Anaconda THP
Anaconda THP
With our products we ensure you of
Stainless steel 1.4404 (AISI 316L) or 1.4541 (AISI 321)
Compliant standards: EN ISO 10380, EN ISO 9001
Clean manufacturing process
Diameter [DN]
6
10
12
20
25
32
40
50
65
80
100
125
Diameter [inch]
Hose inner diameter [mm]
5.9
10
11.8
17.9
24.2
30.7
39.3
49
64
78.7
101
124
Hose outside diameter [mm]
13
19.4
21.8
30.7
40
49
57.4
69.8
86.9
102
132.5
158
Static bend radius [mm]
25
38
45
70
85
105
130
160
200
240
290
350
Dynamic bend radius [mm]
110
150
165
225
260
300
340
390
460
660
750
1000
Max. allowable pressure at 20 °C [bar]
Burst pressure at 20 °C [bar]
- EN ISO 9001
- EN ISO 10380 / ASME 31.3
- Standard deliveries: White room
- High purity: possible upon request
- Each hose is bagged individually and boxed. Longer hoses are coiled, bagged and boxed.
- Helium leak test (1×10⁻⁵ std cm3/s)
- Additional options: he leak test 1×10⁻⁹ std cm3/s

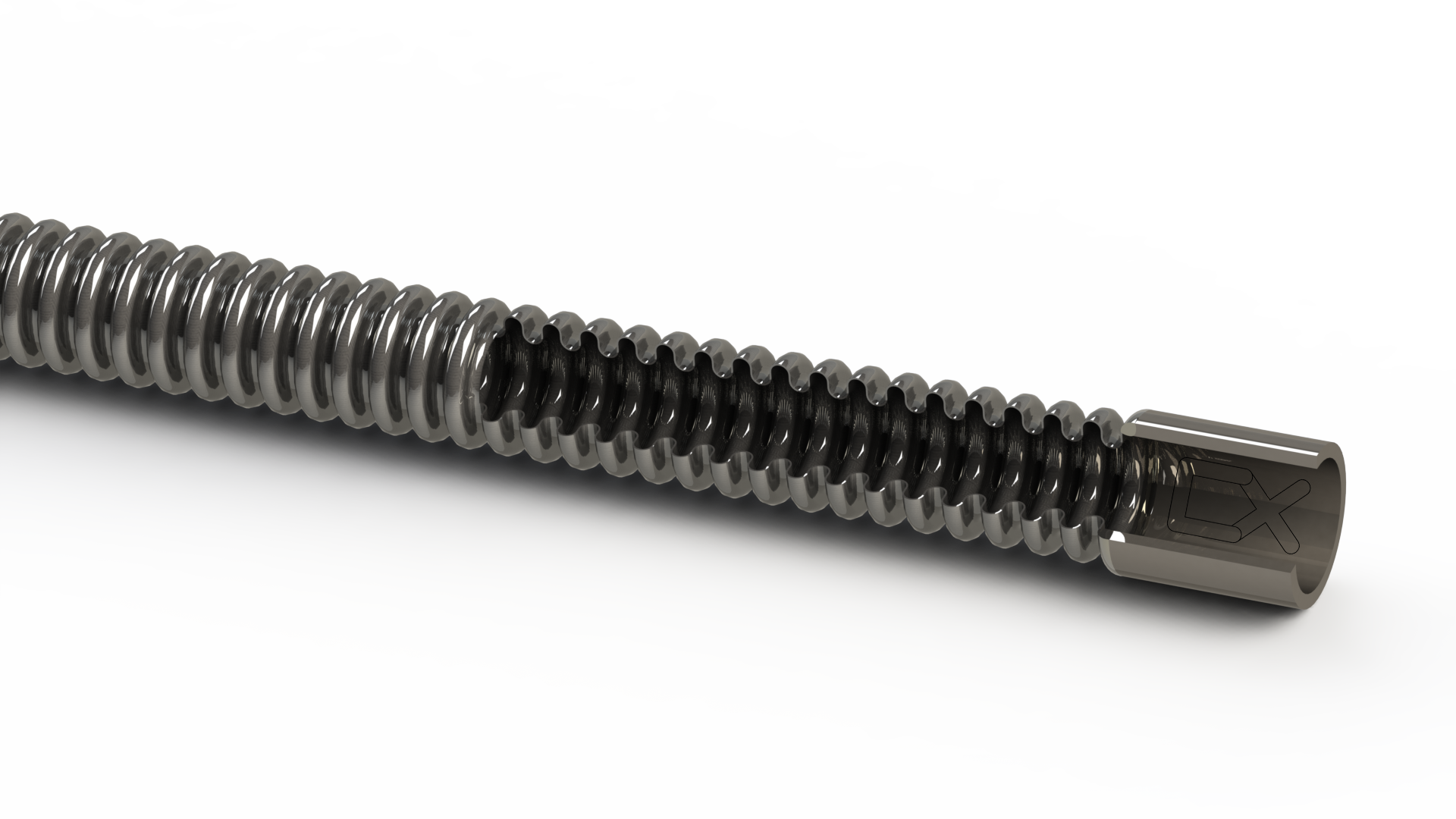

The THP is a high performance flexible stainless steel hose, annularly corrugated, for use in high pressure applications. The manufacturing process of the high pressure series, hydroformed, reinforced walls, with narrow corrugation, guarantees a product of high leak tightness (max. on demand 1×10-9 mb l/s). Additional, the Omega shaped corrugation profile ensures an exceptionally good compromise flexibility/ high pressure resistance.
